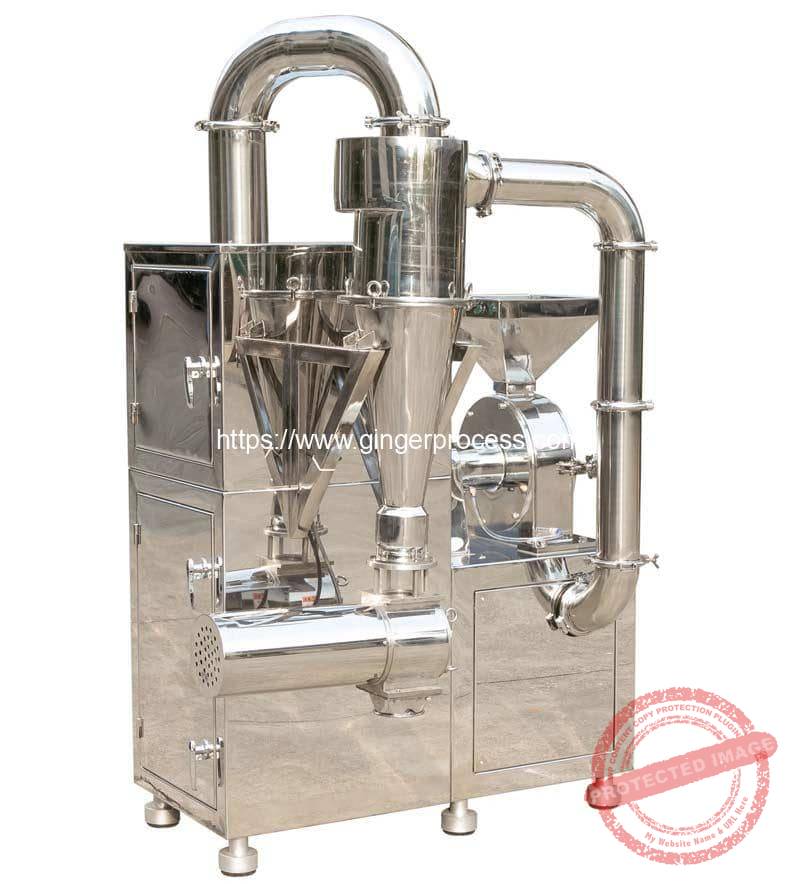

Integrated Continuous Ginger Powder Grinding Machine is used to grind dried ginger slice into powder. It adopts compact design which includes powder crushing function, dust collection device, pulse dust removing box and automatic powder discharge device. Multi-Functional Continuous Ginger Powder Grinder is applied in industries such as pharmaceutics, foodstuff, chemicals and etc, This Powder Grinder Machine is with features of cool air and no sieve or screen. It is not limited by the viscosity, hardness, softness or fiber shape of the raw materials and it has a good effect on all materials, especially to those Chinese herbal medicines with fibers and those with oils.
Table of Contents
Working Principle of Continuous Integrated Ginger Powder Grinder
The machine used the high-speed relative motion of the active fluted disc and the fixed fluted disc to impact and crush the raw material. The different size of granules can be acquired by changing different screen. The crushed material goes through the cyclone separator by the rotating centrifugal force and the suction of fan, Dust is collected by pulse dust collecting box. This Ginger Powder Grinder Machine is designed according to GMP Standard and is made of stainless steel. It has the advantages of simple structure, low energy consumption, easy cleaning.
- In the machine chamber, there is the leaf structure. When operation, the air in the grinding chamber is blown out by the rotary leaves taking out the heat. Therefore, there is no much heat in the chamber to ensure the characteristic of the material.
- When operation, the strong airflow can expel the material out. So it can pulverize the heat-sensitive and sticky material with good effect.
- For the good performance on the heat, it can be the substitute for universal crusher.
- Expect the full force of the fan, the airflow in the grinding chamber blows the fine powder out (the fineness of the powder is adjustable through the sieves). Thus, it can increase the capacity of the machine.
Specification of Integrated Continuous Ginger Powder Grinder
| Model | 20B | 30B | 40B | |
| Capacity | KG/H | 40-200 | 100-400 | 160-800 |
| Feeding size | mm | <10 | <12 | <15 |
| Powder Size | mesh | 20-120 | 20-120 | 20-120 |
| Motor Power | KW | 4 | 7.5 | 11 |
| Dust Collection Power | KW | 1.5 | 2.2 | 3 |
| Spindle Speed | R/M | 4500 | 3800 | 3400 |
| Weight | Kg | 400 | 650 | 780 |
| Size | mm | 1250*100*1900 | 1350*1100*2000 | 1500*1250*2100 |
Working Video of Continuous Integrated Ginger Powder Grinder
Company Profile
Romiter Machinery Co., Ltd. is a market-leading designer and a manufacturer of the ginger processing machines. Romiter Machinery wins a wide reputation for ginger processing machines with high efficiency, excellent reliability, easy maintenance and long lifespan. Romiter has an excellent technical support team, including highly experienced machinists and service technicians.
Romiter Group provides a complete ginger processing machine solution, which includes but is not limited to Ginger Earth Removing Machine, Ginger Breaking Machine, Ginger Washing Cleaning Machine, Ginger Washing Peeling Machine, Ginger Slicing Machine, Ginger Paste Machine, Ginger Tea Machine, Ginger Dryer Oven, Ginger Multi-Layer Dryer, Ginger Powder Making Machine, Ginger Juicer Machine, Ginger Mesh Bag Packing Machine , Ginger Harvester Machine, and Ginger Oil Machine
Welcome to Contact Us for more information
